2B BA No.1/2E HL Mirror No.4 Surface Finish Stainless Steel Sheet 316L Grade AISI/ASTM/SUS/JIS/DIN/TUV/BV/ETC Standard

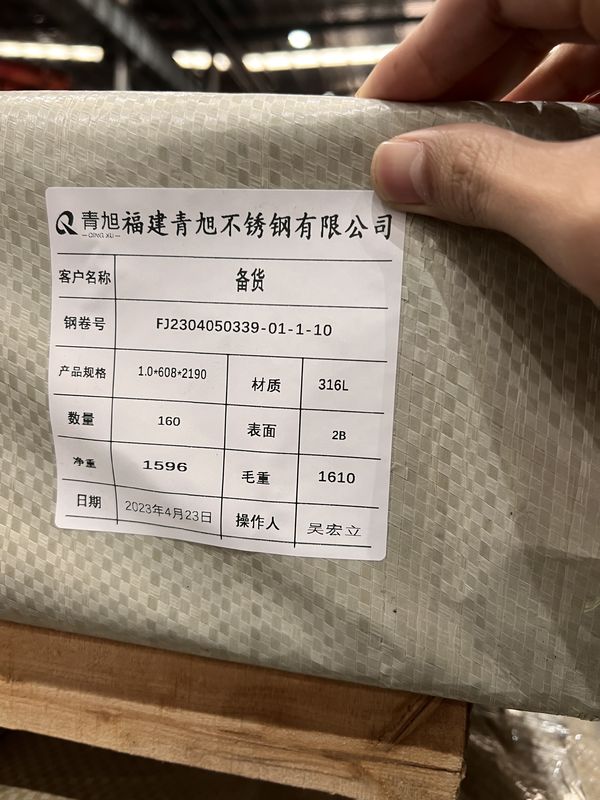

316L Stainless Steel Sheet 1.0*608*2190 2B Finish Stainless Steel ASTM Standard
Fabrication
Fabrication of all stainless steels should be done only with tools dedicated to stainless steel materials. Tooling and work surfaces must be thoroughly cleaned before use. These precautions are necessary to avoid cross contamination of stainless steel by easily corroded metals that may discolour the surface of the fabricated product.
Product Details
Grade 316 is the standard molybdenum-bearing grade, second in importance to 304 amongst the austenitic stainless steels. The molybdenum gives 316 better overall corrosion resistant properties than Grade 304, particularly higher resistance to pitting and crevice corrosion in chloride environments. Grade 316L, the low carbon version of 316 and is immune from sensitisation (grain boundary carbide precipitation). Thus it is extensively used in heavy gauge welded components (over about 6mm). There is commonly no appreciable price difference between 316 and 316L stainless steel.
The austenitic structure also gives these grades excellent toughness, even down to cryogenic temperatures. Compared to
chromium-nickel austenitic stainless steels, 316L stainless steel offers higher creep, stress to rupture and tensile strength at elevated temperatures.
Application
Insulated cups (we supply stainless steel materials to the largest manufacturer of insulated cups in China)
Springs, screws, nuts & bolts
Sinks & splash backs
Architectural panelling
Tubing
Brewery, food, dairy and pharmaceutical production equipment
Sanitary ware and troughs
Saucepans
Supplied Forms

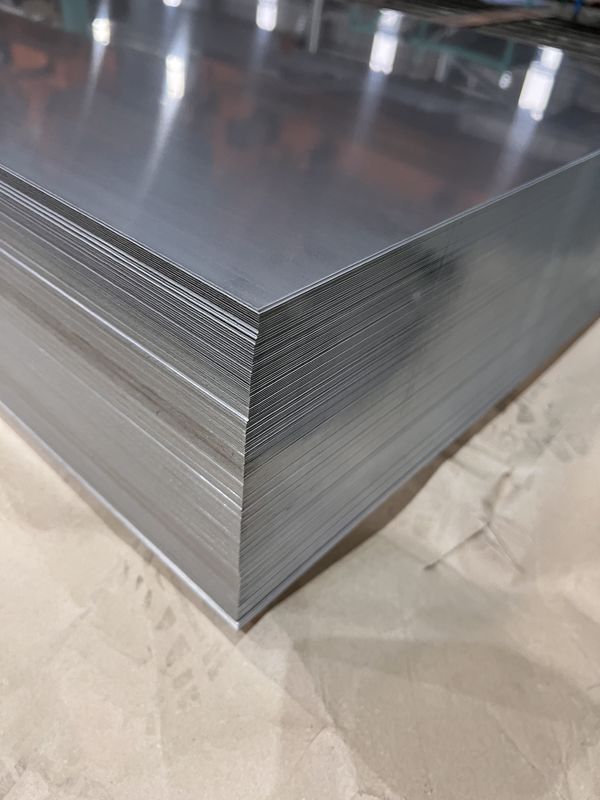

Sheet
Plate
Coil
Specification
Chemical Compostion
| Chemical Composition | |||||||||
| Material | C | Si | Mn | P | S | Ni | Cr | Mo | N |
| 201 | ≤0.15 | ≤1.00 | 5.5~7.5 | ≤0.060 | ≤0.03 | 3.5~5.5 | 16.0~18.0 | - | - |
| 304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.0~11.0 | 18.0~20.0 | - | - |
| 304L | ≤0.03 | ≤0.75 | ≤2.00 | ≤0.045 | ≤0.03 | 8.0~12.0 | 18.0~20.0 | - | - |
| 316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.0~14.0 | 16.0~18.0 | 2.00~3.00 | - |
| 316L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.0~14.0 | 16.0~18.0 | 2.00~3.00 | ≤0.10 |
Machine Capability
| Yield strength (N/mm2) | Tensile strength (N/mm2Mpa): | Elongation: | Hardness |
| >=205 |
>=520
|
>=40
|
HB <=187 BRB <=90
|
Density(g/cm3) : 7.93
Machine Capability
| Yield strength (N/mm2) | Tensile strength (N/mm2Mpa): | Elongation: | Hardness |
| >=205 |
>=520
|
>=40
|
HB <=187 BRB <=90
|
Density(g/cm3) : 7.93
Main Features
1. Environmental protection: can effectively reduce environmental pollution.
2. Corrosion resistance: Strong anti-fouling, acid, corrosion, wear resistance, non-radioactive.
3. Surface cleanliness: The product surface is smooth and compact, not easy to be polluted by dust, and has good self-cleanliness.
4. Easy Maintenance: A slight loss is easy to repair.
| Thickness | 0.2-3mm |
| Width | 30-850mm/1000mm/1219mm/1240mm/1500mm |
| Standard | AISI/ASTM/SUS/JIS/DIN/TUV/BV/ETC |
| Surface Finished | 2B BA No.1/2E HL Mirror No.4 |
| Application | It is widely used in high-temperature and electric industry, medical devices, construction, chemistry, food industry, agriculture, |
| and ship components. | |
| It also applies to food and beverage packaging, kitchen supplies, trains, aircraft, conveyor belts, vehicles, bolts, nuts, | |
| springs, and screen mesh etc. . | |
| Certification | CE, ISO, SGS, BV |
| Technique | cold drawing |
| Edge | Mill Edge / Slit Edge |
| Quality | SGS Inspection |
| Grade(ASTM UNS) | 201 304 316 410S 430 |
| Price Terms | FOB |
| Export Packing | Waterproof Paper, Steel Strip Packed and other Standard Export Seaworthy Package, or customized package |
| Supply Ability | 10000Ton/Tons per Month |
About us:
FAQ:
Q1:What product information must I provide before making a purchase?
Please provide the grade, width, thickness, and surface treatment requirements, as well as the quantities you require.
Q2:What shipping ports are there?
We normally ship from FuZhou, Shanghai, Xiamen ports.
Q3:What are your payment terms?
20% T/T in advance and 80% balance before shipment.
Q4:What about product pricing information?
Prices vary due to changes in raw material prices on a regular basis.
Q5:Is it possible to send samples?
Of course, we offer free samples and express shipping to customers all over the world.
Our products are sold all over the world, you can rest assured.
